Olympus XA Buyer's Guide: XA, XA2, XA3, XA4 — and why only one of them is a rangefinder

Most compact cameras of the late 1970s were designed by committee. The Olympus XA was designed by Yoshihisa Maitani, the engineer behind the Pen F and the OM-1, and it shows in every decision. There is no lens cap, because the sliding barrier is the cap — and opening it switches the camera on. There is no separate flash, because the flash clips onto the side when you want it. The self-timer lever folds down and doubles as a little leg to stand the camera on for long exposures. Nothing on this camera does only one job.

It is also, in its original form, the smallest 35mm rangefinder ever made — and that leads straight to the thing buyers get wrong.

The thing most buyers miss

"XA" is used loosely. People write it in listing titles to mean the whole family, and the family is not one camera. Only the original XA is a rangefinder, and only the original XA lets you choose the aperture.

The 1979 XA has a real coupled rangefinder — you line up a patch in the finder and the lens follows — plus aperture-priority automatic exposure and a shutter that will run from 1/500 all the way out to ten seconds. Its six-element f/2.8 Zuiko is the best lens in the range. It is a photographer's camera that happens to be tiny.

The XA2, XA3 and XA4 are a different proposition. They focus by zone — you set a symbol for close, middle or far and trust it — and exposure is fully programmed, so you do not choose the aperture at all. They are excellent cameras and for many people the better daily choice. But if you buy an XA2 expecting the rangefinder and the manual aperture, you have bought the wrong camera.

The family at a glance

	XA 1979	XA2 1980	XA1 1982	XA3 1985	XA4 1985
Lens	35mm f/2.8 6 elements	35mm f/3.5 4 elements	35mm f/4 4 elements	35mm f/3.5	28mm f/3.5 5 elements
Focusing	Coupled rangefinder from about 0.9 m	Zone, 3 positions	Fixed focus from 1.5 m	Zone, 3 positions	Scale, down to 0.3 m
Exposure	Aperture priority	Program	Program	Program	Program
Shutter	10 s – 1/500	2 s – 1/750	1/30 – 1/250	2 s – 1/750	2 s – 1/750
Film speed	ISO 25–800	ISO 25–800	ISO 100 / 400 only	DX, manual to 1600	ISO 25–800
Backlight compensation	Yes, +1.5 EV	—	—	Yes	—
Meter	CdS	CdS	Selenium	CdS	CdS
Weight	225 g	200 g	190 g	220 g	230 g
Batteries	2 × SR44 / LR44 (the XA1's selenium meter needs none)

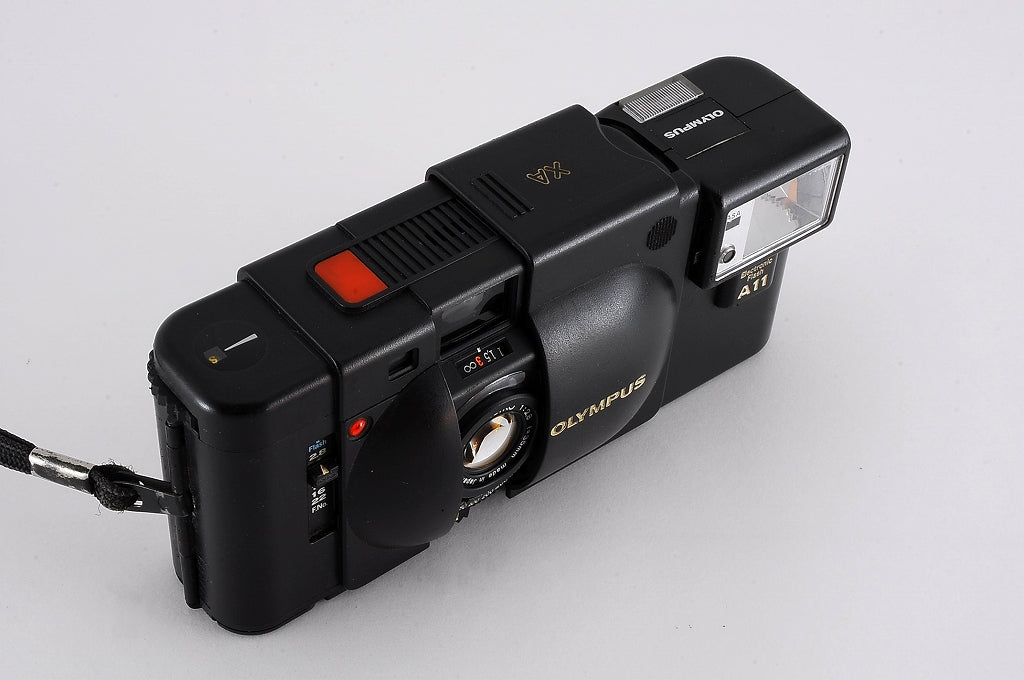

All of them are 102 mm wide and about 40 mm thick — the size of a deck of cards. The clip-on flashes are shared: the A11 takes one AA and has a guide number of 10; the A16 takes two and reaches 16.

Which one should you buy?

• You want to focus, and to choose the aperture: the XA. Nothing else in the range offers either.
• You want the smallest camera you will actually carry every day: the XA2. Zone focus is quicker than a rangefinder once you trust it, and the lens is very good.
• You shoot modern fast film and hate setting things: the XA3, for DX coding and backlight compensation.
• You want wide, and close: the XA4, with a 28mm lens that focuses to 0.3 m. It is the specialist of the family and priced accordingly.
• The XA1 is the budget model: fixed focus, f/4, a selenium meter and two film speeds. Charming, but do not buy it expecting the XA experience.

Why shoot one today

The barrier changes how you carry a camera. Closed, the lens and the viewfinder are sealed and the camera is inert; it can live in a coat pocket with keys in it. Open it and the camera is already on. There is no cap to lose and no bag to unzip, which in practice means it is with you on the days a larger camera would have stayed home.

The XA's exposure range is genuinely unusual. Aperture priority down to ten seconds, in a camera this size, means night shots that most compacts simply cannot take. Fold out the self-timer lever, stand the camera on a wall, and it becomes its own tripod.

The lens is a Zuiko, and it behaves like one. The six-element f/2.8 on the original is sharp and contrasty in a way that flatters colour film, and the four-element f/3.5 on the XA2 is not far behind in good light.

The batteries are still sold everywhere. Two SR44 or LR44 cells, the same as a wristwatch. No mercury cells, no proprietary packs.

It is quiet. A leaf shutter and no motor. After the whirr-and-clack of an autofocus compact of the same era, the XA is close to silent — which is why it is the one people take into cafés, galleries and other people's weddings.

Know before you shoot

• The shutter release is electromagnetic and has almost no travel. Maitani made it that way to eliminate camera shake, and it works — but it is a hair trigger. Nearly every owner fires a frame by accident in the first roll. Rest your finger beside it, not on it.



• The electronic shutter is the known failure point across the whole family, usually showing up as a shutter button that stops responding. This is the single most important thing to establish before buying.
• There is no mechanical fallback. Flat batteries mean no camera at all. Carry a spare pair; they are tiny.
• The rangefinder patch on the XA is small and can be dim on a tired example. It is accurate, but it is not a Leica finder.
• 0.9 m is as close as the XA goes (1.5 m on the XA1). If you want close-ups, that is what the XA4 exists for.
• The flash is an accessory. A camera sold without its A11 or A16 has no flash at all, and the units are easy to lose. Check what is actually included.



• Zone focus is a skill. On an XA2 or XA3 the camera cannot tell you that you left it on the close setting. Reset it to the middle symbol out of habit.

How to shoot it well

1. On the XA, use the backlight lever. It adds +1.5 EV and it is the difference between a face and a silhouette when your subject is against a window or a bright sky.
2. Set the aperture and let it take its time. Aperture priority with a ten-second ceiling is the XA's whole argument. Indoors at f/2.8 on ISO 400 film it will find an exposure where other compacts demand flash.
3. Use the self-timer lever as a leg. Fold it out, sit the camera on any flat surface, and use the timer to avoid touching it at all.
4. Learn the feather touch before the first important frame. Squeeze, do not press.
5. Check the ISO lever. On the XA and XA2 you set film speed by hand, and it stays where you left it from the last roll.
6. Close the barrier every time. It protects the lens and stops the battery drain — and it is the habit the whole design is built around.

Where it sits among its rivals

The Canon Autoboy and the Nikon L35 of the same years are autofocus cameras: you point and they decide. The XA asks you to do more and gives you more back — focus, aperture, and near silence in a smaller body. If you want a camera that thinks for you, read our Canon Autoboy guide or our Nikon L35 guide. If you want a camera that gets out of the way while leaving the decisions to you, and that disappears into a pocket, this is the one. The Olympus mju II is smaller still but takes all the control away again, and sits in a different bracket entirely.

What to check before you buy

1. The shutter button. The most important check on any XA. With fresh cells it should fire reliably every time, not intermittently. A button that works "most of the time" is a camera on its way out.
2. Power. Two fresh SR44 cells, and the meter should respond as you point the camera at light and shade. There is no mechanical mode to fall back on.
3. The barrier. It should slide firmly and switch the camera on and off cleanly. A loose or sticking barrier is both a nuisance and a sign of a hard life.
4. The rangefinder (XA only). The patch should be visible and should move as you turn the focus lever. Ask whether vertical and horizontal alignment have been checked against a distant subject.
5. Shutter and film transport. Ask whether the seller has run an actual test roll. On a camera with an electronic shutter this is the only way to know it fires consistently across a whole roll.
6. The lens. Ask for dust, fungus, haze and cleaning marks to be reported separately, not as "clean" or "good condition". In our experience light dust and slight fungus almost never appear in photographs, and slight haze usually shows only when shooting into the light. Heavy haze or fungus is a different matter, and we grade it as such.
7. Light seals. The foam around the back door turns sticky with age and leaks light onto the edge of your frames. We replace deteriorated seals before a camera is listed.
8. Which model, and what is included. Confirm XA, XA1, XA2, XA3 or XA4 — and whether the A11 or A16 flash comes with it.

How we grade and test

Every XA we list has been through the checks above. We run a test roll to confirm the shutter and the film transport, replace light seals that have deteriorated, and report each function on the product page as Works properly or Not working, with dust, fungus, haze and cleaning marks reported separately. The cosmetic grade follows our six-step scale from TOP MINT to As Is, and anything we find goes in the remarks. The full explanation is on our Grading & Inspection page.

Tested or "as is"?

This is the family where it matters most. The XA's electronic shutter is not a part you clean back to life, and an untested body is a coin toss on the one component that cannot be ignored. For a competent repairer an "as is" XA can still be worth having. For everyone else, buy one that has had a roll of film through it and a report to go with it.
